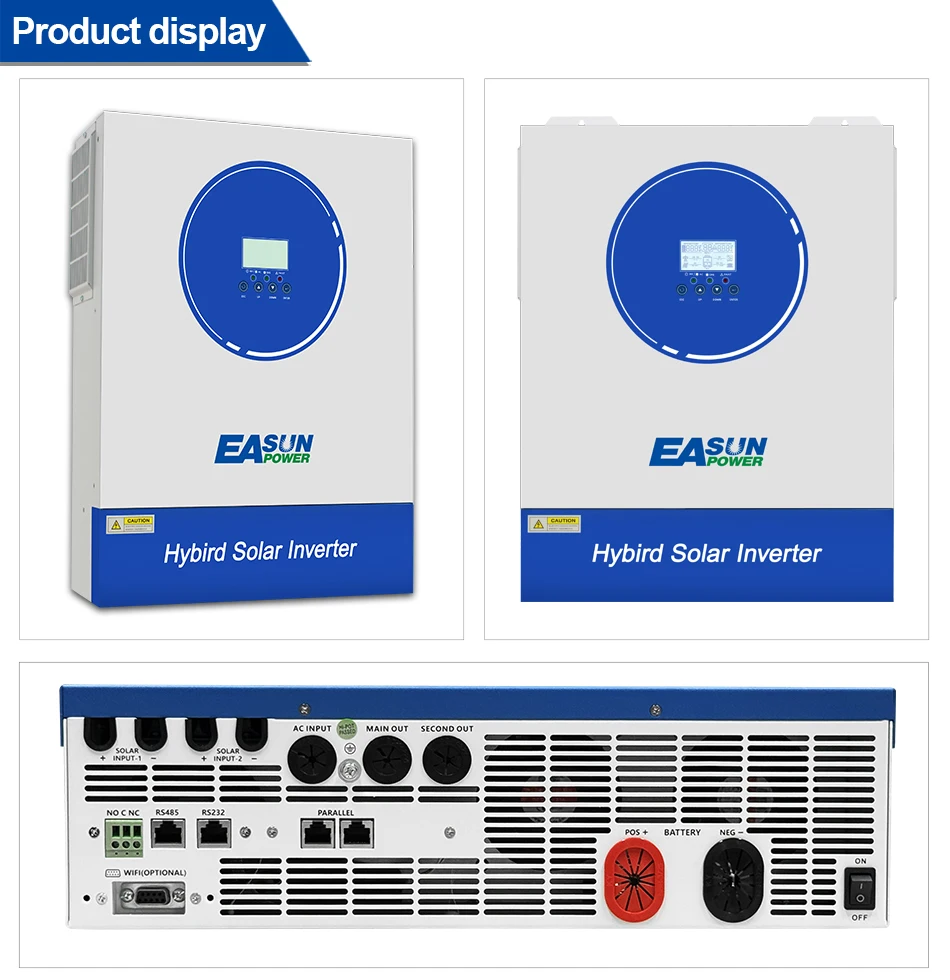

Description

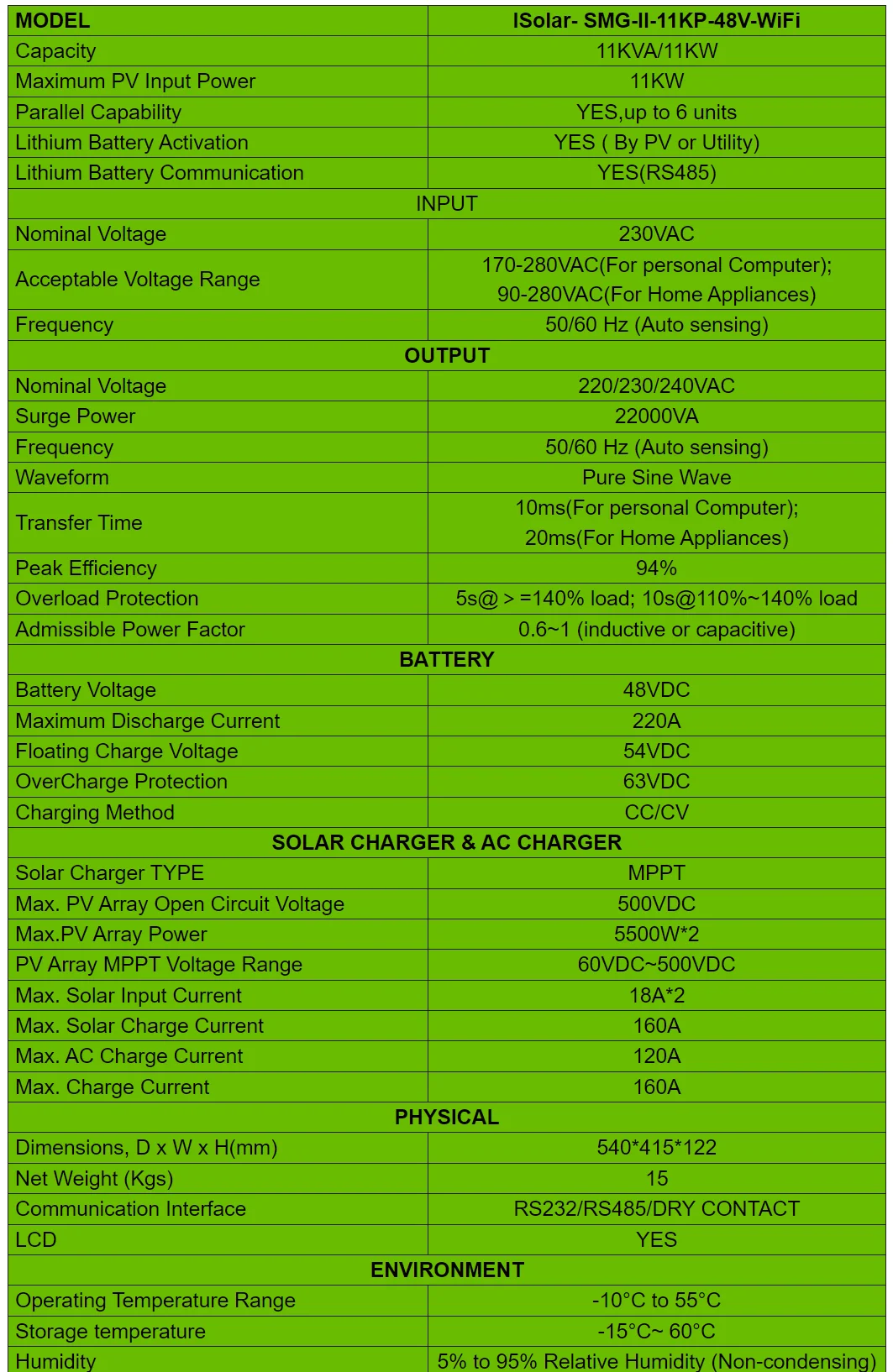

- Brand Name : EASUN POWER
- Certification : CE
- Size : 540*415*122mm
- Origin : Mainland China
- Output Frequency : 50/60Hz
- Output Type : SINGLE
- EANCode : 6901111000061
- is_customized : Yes
- Output Current : 11A
- Weight : 17KG
- Is Smart Device : Yes
- Model Number : SMG-II-11KP
- Parallel Capability : YES,up to 6 units
- Lithium Battery Activation : YES ( By PV or Utility)
- Capacity : 11KVA/11KW
- PV Input Power : 11KW
- Nominal Voltage : 230VAC
- Surge Power : 22000VA
- Waveform : Pure Sine Wave
- Peak Efficiency : 94%

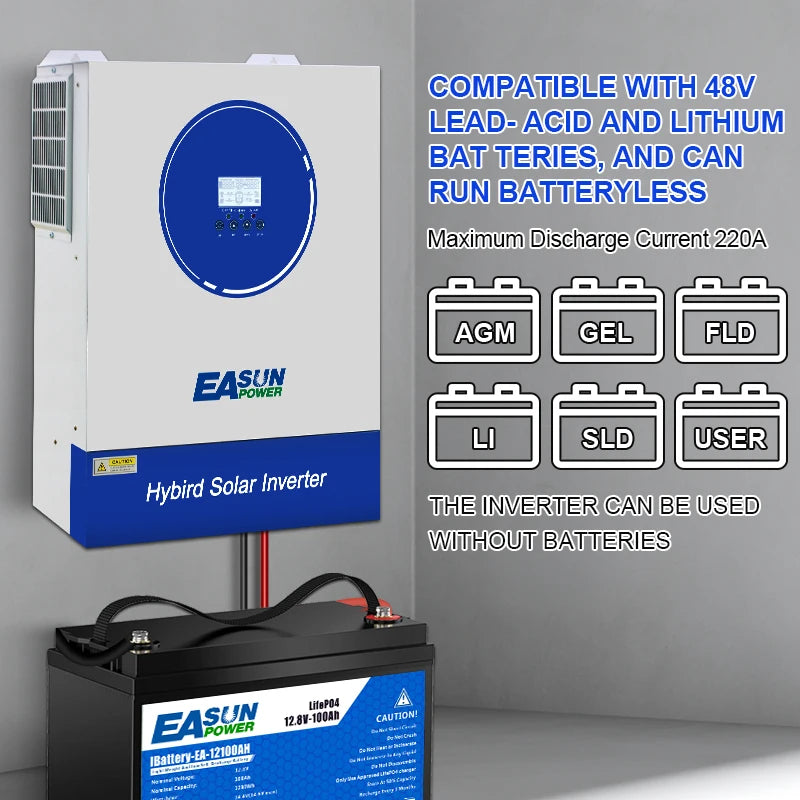

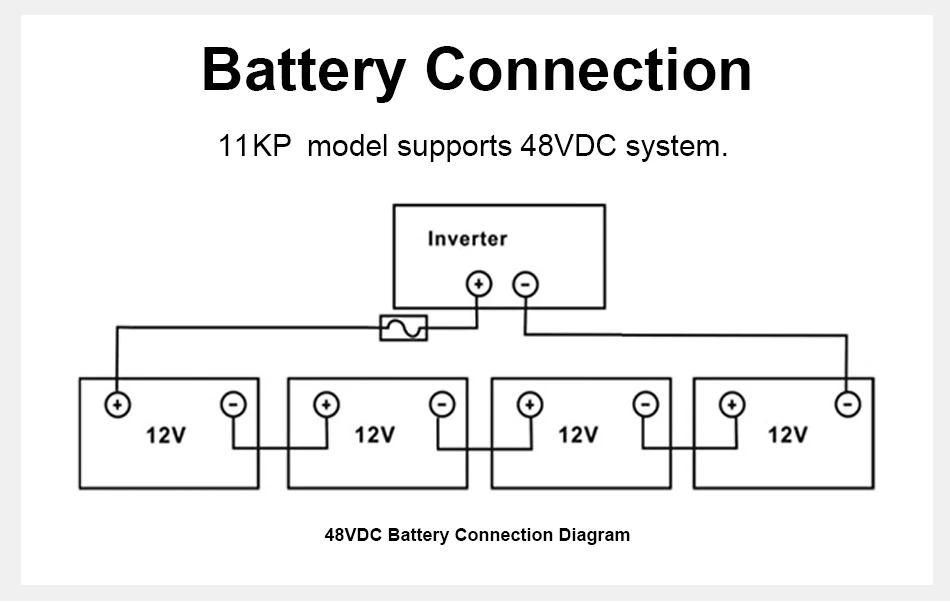

- Battery Voltage : 48VDC
- Floating Charge Voltage : 54VDC
- OverCharge Protection : 63VDC

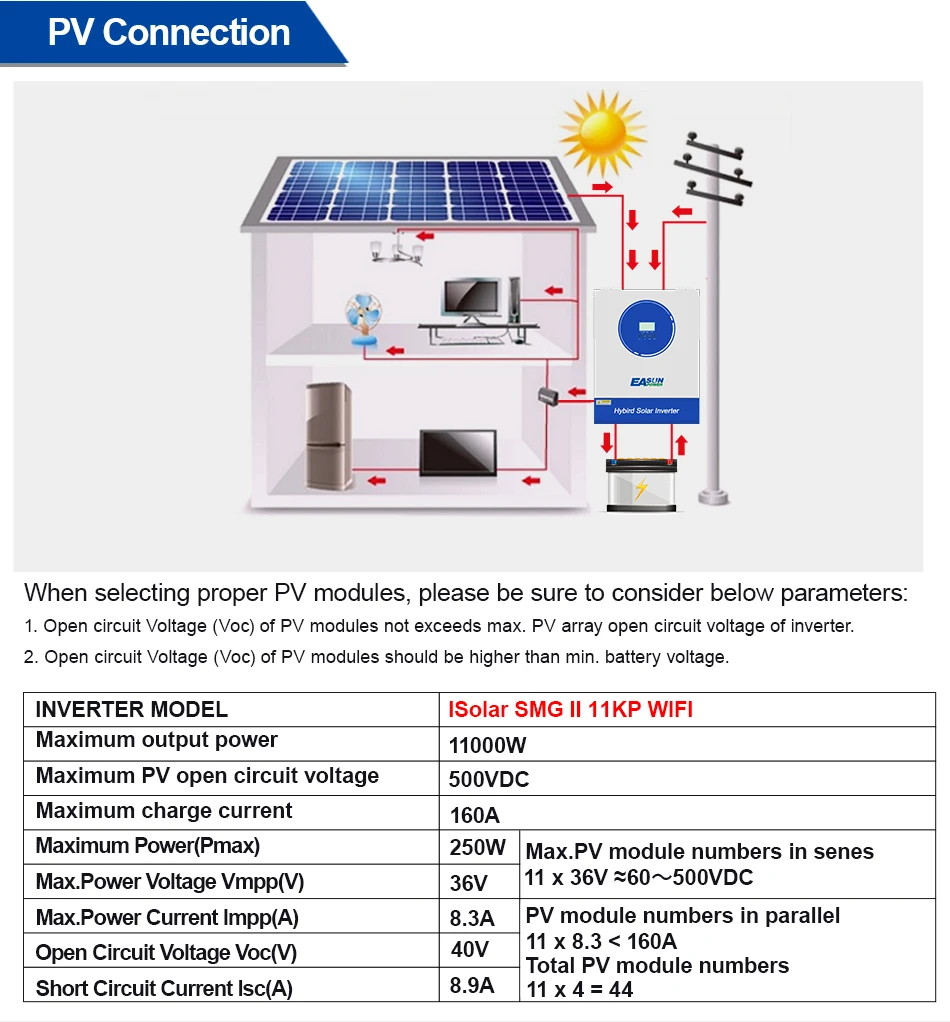

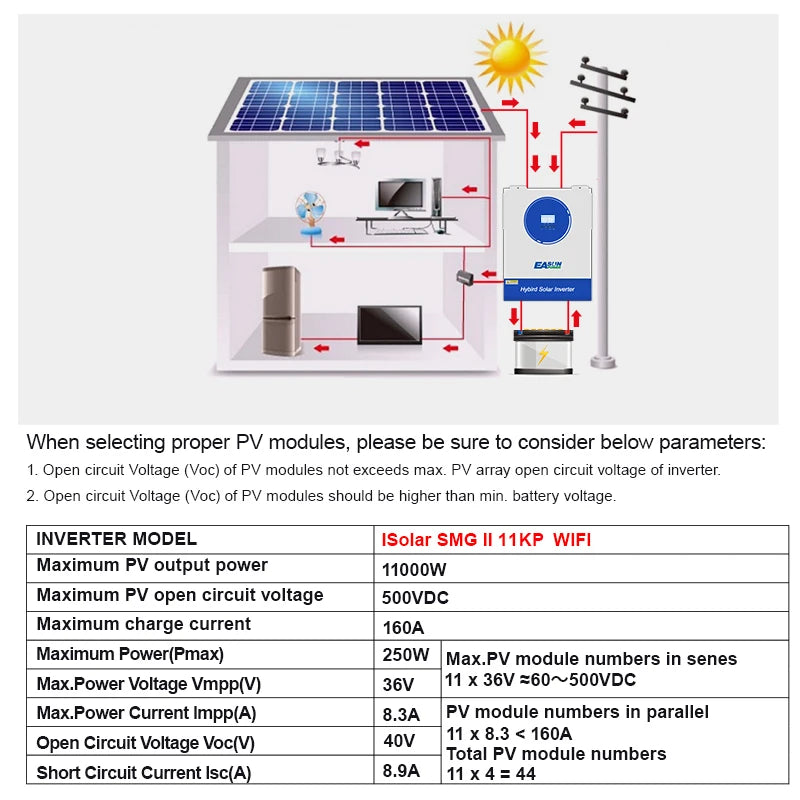

- PV Open Circuit Voltage : 500VDC
- PV Array Power : 5500W*2
- MPPT Voltage Range : 60VDC~500VDC
- Solar Charge Current : 160A

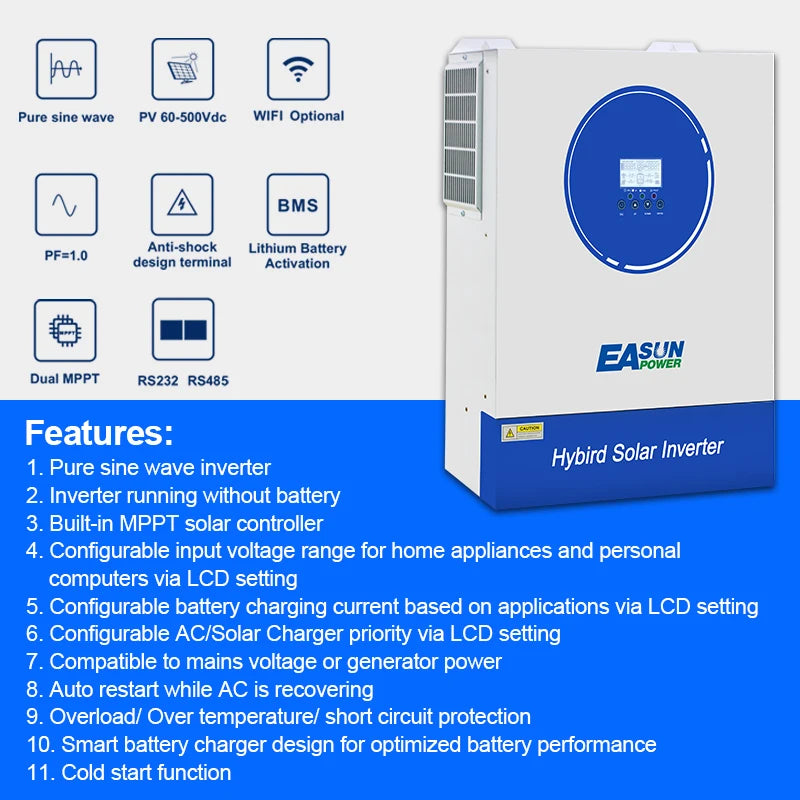

Features:
1. Pure sine wave inverter

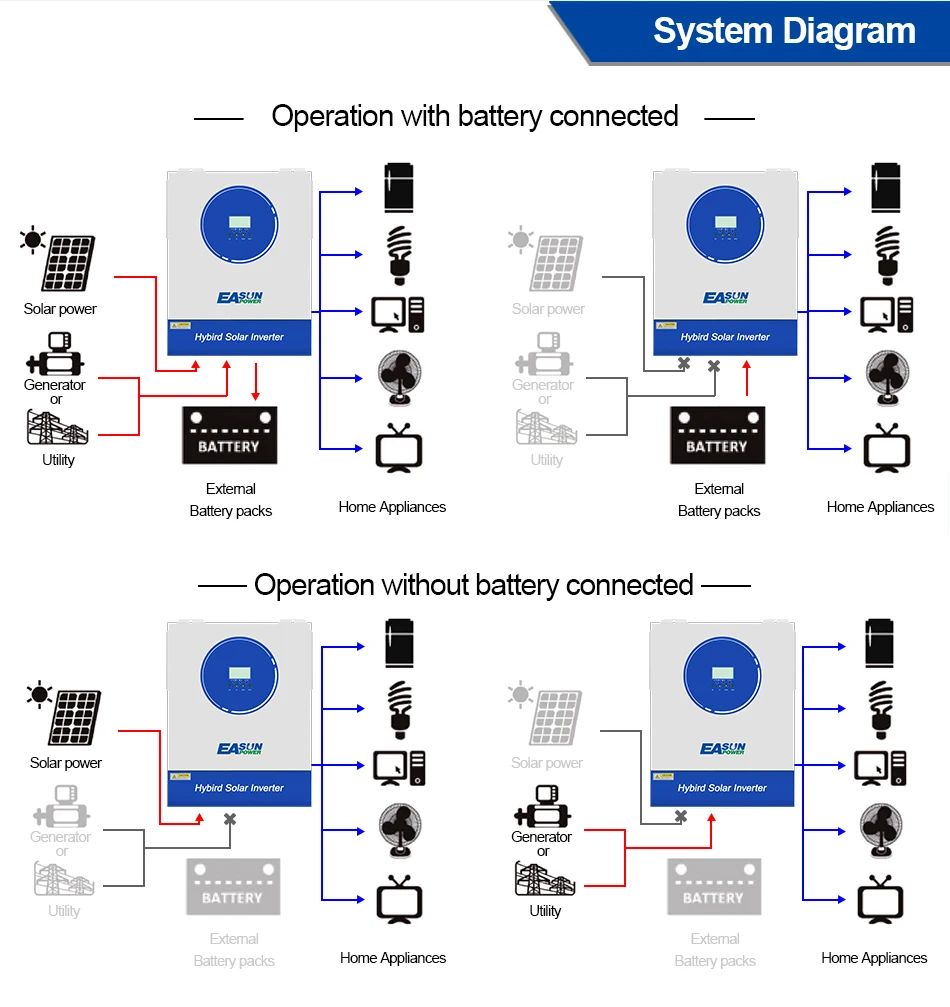

2. Inverter running without battery(PV input voltage higher than 200V)
3. Built-in 2*MPPT solar controller
4. Configurable input voltage range for home appliances and personal computers via LCD setting
5. Configurable battery charging current based on applications via LCD setting
6. Configurable AC/Solar Charger priority via LCD setting

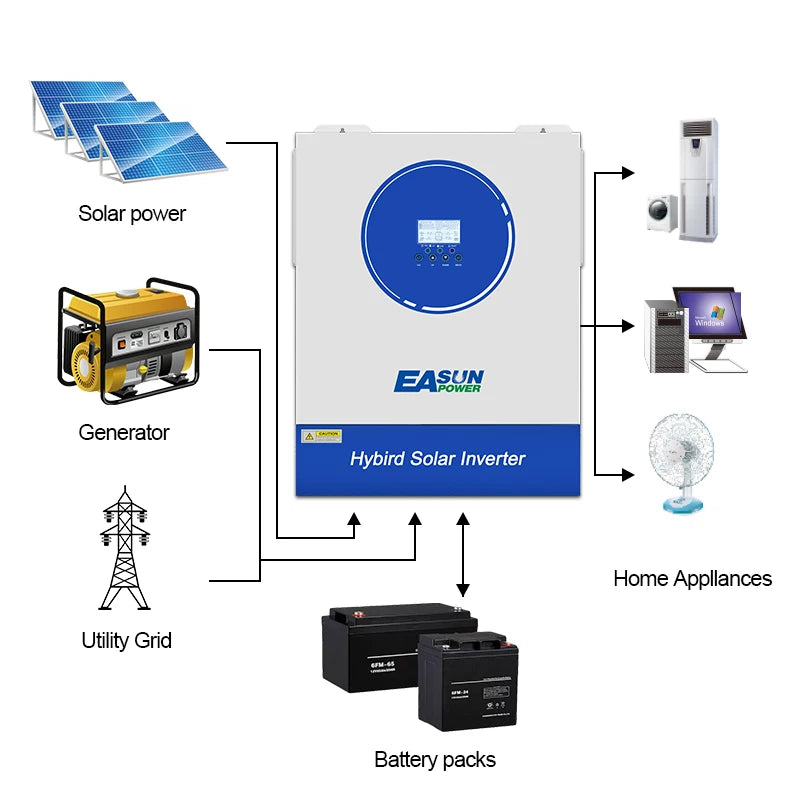

7. Compatible to mains voltage or generator power
8. Auto restart while AC is recovering
9. Overload/ Over temperature/ short circuit protection
10. Smart battery charger design for optimized battery performance
11. Cold start function
